China 26650 3.2V 2800mAhLiFePO4 high rate discharging power cell Manufacturer and Supplier | SOSLLI

Short Description:

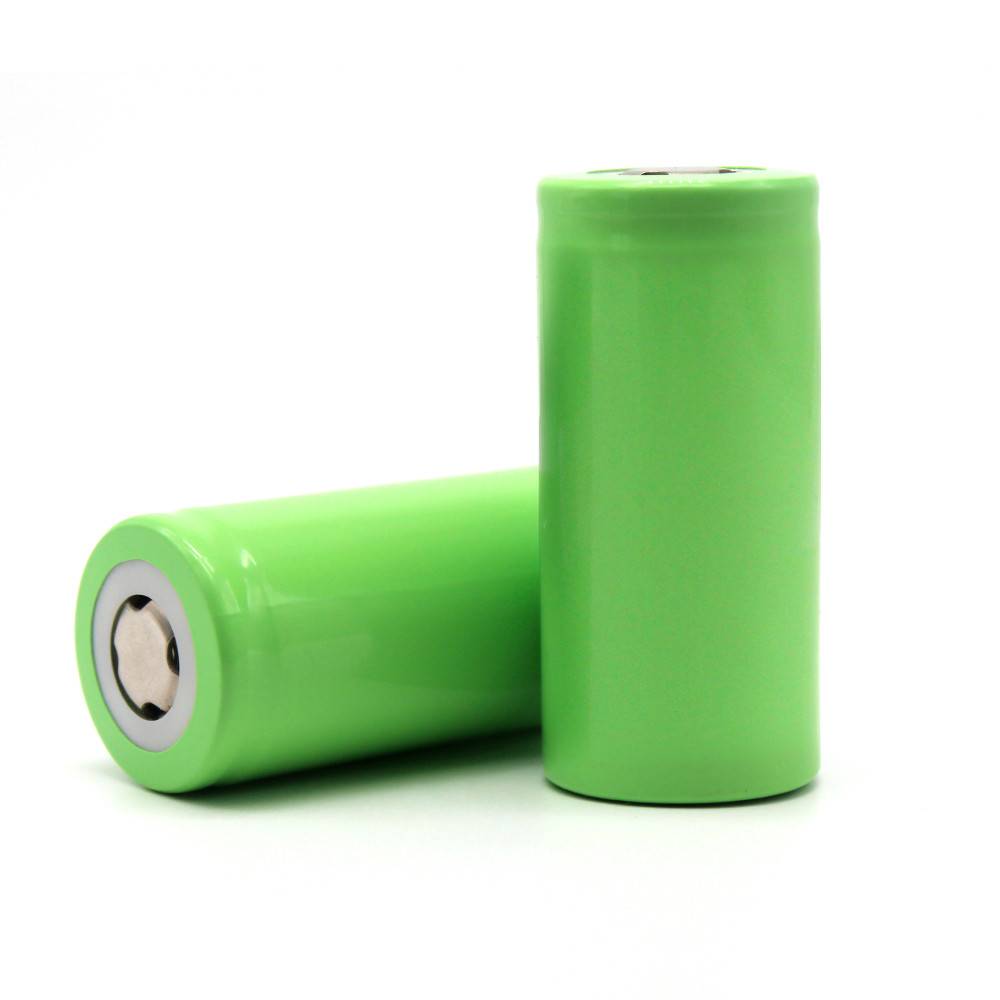

3.2V 2.8AH 26650 Lifepo4 battery cell for electric lighting, consumer electronics,toys,etc.

Tech Specs & Features

Product Video


Product Details

Product Description

The lithium iron phosphate battery is a type of rechargeable battery that uses LiFePo4(LFP)as its cathode material. The cathode material is one of the most important and defining components of lithium ion batteries. It is also a major determinant of the final performance and cost of a rechargeable battery.

BST is manufacturing LiFePo4 cylindrical cells, equipped with fully automatic cell production line, BST's daily production capacity could reach up to 160,000.

 Key Features

● Long cycle life: more than 2000 times (charging and discharging at 1C and 100% DOD, remaining capacity more than 80%)

 ● Safety: The cell has a relatively stable charging and discharging platform due to the use of LiFePo4 as its cathode material, the structure of the cell barely change during charging and discharging, it won't burn or explode even under special conditions such as short circuit, overcharging, squeezing.

 ● Excellent high temperature performance: the operating temperature could reach up to 75℃, the performance at high temperature is much better than other type of lithium cell.

 ● Eco-friendly: The LiFePo4 cell doesn't contain any heavy metals or rare metals, it is non-toxic and pollution free.


● Solar Energy Storage System, UPS backup power supply, Telecom base station, Solar street light, Emergency light, Electric vehicle, Electric motorcycle, Yacht, RV, Golf cart, E-bike, Power tool, Medical equipment and other Electronic Products.


CapacityStandard Charge/Discharge2800mAh
Nominal VoltageAverage3.2V
Initial Internal ResistanceAC Impedance 1±0.1KHZ
50%SOC 25±2℃
Charge VoltageLimited Charging Voltage3.65V
Charge CurrentStandard Charge560mA(0.2C)
Max Continuous Charge(10-60℃)14000mA(1C)
Max Continuous Charge(0-10℃)≦560mA(0.2C)
Standard Charge(CC-CV)Constant Current560mA(0.2C)
Constant Voltage3.65V
Cut-off Current28mA(0.01C)
Standard DischargeConstant Current560mA(0.2C)
Cut-off Voltage(End)2.0V
Maximum DischargeMax Continuous Discharge Current42000mA(3C)
Operating TemperatureCharge-10℃-60℃
Storage Temperature1 month-20℃-45℃
3 month-20℃-35℃
6 month-20℃-25℃
Cycle Life1C charge and 1C discharge, remaining capacity≥ 80%2000 times(100%DOD)
Production CapacityAnnually0.7GWH

  • Previous:
  • Next:

  • 1.  Q: Can you accept OEM and ODM Service? What information should be provided for OEM and ODM?

    A: Yes, we supply OEM&ODM service as clients requirement.Please provide details in below picture, such as voltage, capacity, max continuous working current, size requirement, package,etc.


    2.  Q: Can we get samples for test?

    A: Yes, but free samples are not available at beginning.

    3. Q: What’s your payment term?

    A: TT, L/C, West Union, Paypal etc.

    4. Q: What’s your warranty for products?

    A: Generally speaking, it’s one year’s warranty, for quality problems, we will send you a new one.

    5. Q: How long will be the delivery?

    A: Usually delivery in 10-15 days, but could be change according to the quantity or other things.
