China 12V 8Ah LiFePO4 Deep Cycle Battery Manufacturer and Supplier | SOSLLI

12V 8Ah LiFePO4 Deep Cycle Battery Featured Image

Short Description:

12V 8Ah deep cycle lithium battery is specially designed to replace lead acid battery.

Tech Specs & Features

Product Video

FAQ

Product Details

Product Model	SSL1208S	SSL1212S	SSL1220S
Nominal voltage	12.8V	12.8V	12.8V
Energy	102.4Wh	153.6Wh	256Wh
Rated Capacity	8A	12A	20A
BMS	8A	12A	20A
Max. Continuous Output Power	102.4W	153.6W	256W
Dimension	150100100mm	150100100mm	18883178mm
Recommend chg Current	2A (0.2C)	3A (0.2C)	4A (0.2C)
Max. Continuous Charge Current	8A	12A	20A
Max. Cont Discharge Current	8A	12A	20A
Max. Discharge Current	20A	30A	50A
Charge Voltage	14.4V± 0.2V	14.4V± 0.2V	14.4V± 0.2V
Charge Method	CC/CV	CC/CV	CC/CV
Application	Home Energy Storage, RV Caravans, Small Boat Motors, Golf Carts	Home Energy Storage, RV Caravans, Small Boat Motors, Golf Carts	Home Energy Storage, RV Caravans, Small Boat Motors, Golf Carts

escription

Our deep cycle lithium battery is specially designed to replace lead acid battery. Compared with lead acid battery, LiFePO4 has many advantages such as longer cycle life, smaller size and weight, shorter recharging time and falling prices only add to the appeal of lithium-ion battery solutions.

Features

● Longer cycle life,5 times lifetime than lead acid battery

● Higher safety, reliability and energy density

● Smaller size and lighter weight, easy installation

● Better performance at high & low temperature

● Intelligent battery management system

Applications

● Electric bicycle

● Electric powered vehicles

● Wheelchairs

● Electric toys

● Electric scooter

● Golf car & Tourism car

● RV (Recreational Vehicle)

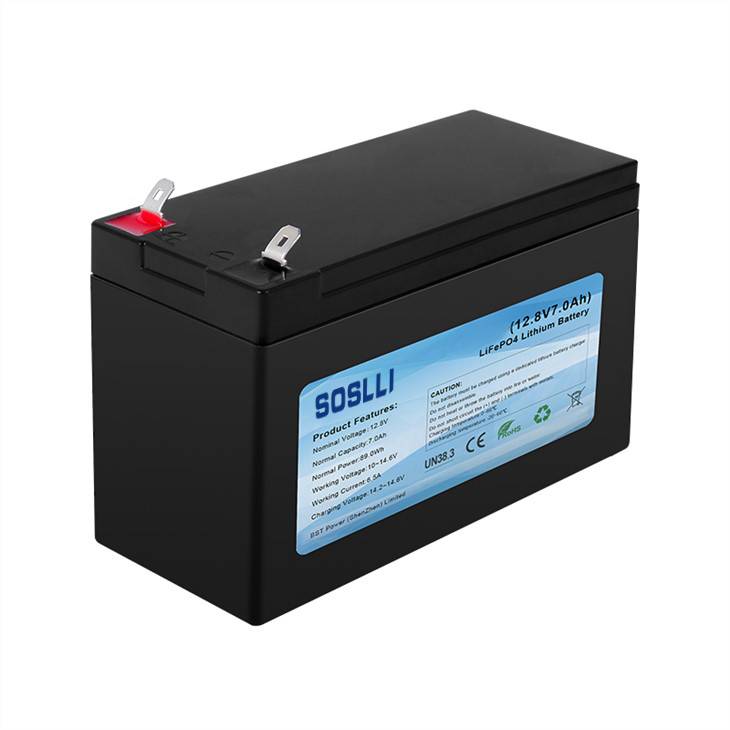

Specification	Basic Parameters	BP12-7.0
Nominal	Nominal Voltage	12.8V
	Nominal Capacity	7Ah
	Usable Capacity	89.6Wh
Physical	Dimensions	LWH=1516594mm
Physical	Weight	0.95Kg
Electrical	Charging Voltage	14.2V～14.6V
	Charging Current	6.5A
	Discharging Voltage	10.0～14.6V
	Discharging Current	6.5A
	Peak Discharging Current	10A(1S)
Others	Terminal	F1
	Chargeing Temperature	0～50℃
	Dischargeing Temperature	-20～55℃
	Shelf Temperature	-20～45℃
	Design Life	8+ year 25℃
	Cycle Life	＞2000 （25℃ 80%DOD）
	Certification	CE/UN38.3

Previous: 60v 20Ah lithium ion battery pack for E bike

Next: 12V 20Ah LiFePO4 Deep Cycle Battery

1. Q: Can you accept OEM and ODM Service? What information should be provided for OEM and ODM?

A: Yes, we supply OEM&ODM service as clients requirement.Please provide details in below picture, such as voltage, capacity, max continuous working current, size requirement, package,etc.
