China 12V 200AH liFePO4 battery pack in 2U case for telecom application Manufacturer and Supplier | SOSLLI

Short Description:

Title: 12V 200AH LiFePO4 battery pack in 2U case for telecom application
Model No.: SSL-IFR4S2PE1000
Introduction: 12V 200AH LiFePO4 lithium iron phosphate LFP battery pack for solar energy storage,off-grid, backup power.,UPS station,home household storage powerwall, iron tower, marine yacht,solar energy,etc.

Tech Specs & Features

Product Video



Title: 12V 200AH LiFePO4 battery pack for solar energy storage
Model No.: SSL-IFR4S2PE1000
Introduction: 12V 200AH LiFePO4 lithium iron phosphate LFP battery pack for solar energy storage,off-grid, backup power.,UPS station,home household storage powerwall, iron tower, marine yacht,solar energy,etc.


1Brand NameSOSLLI or OEM
2Model NO.SSL-IFR4S2PE1000
3Normilar Capacity200Ah0.2 C5A discharge
4Nominal Voltage12.8V
5Discharge Voltage (Min.)10.0V
6Charging Voltage (Max.)14.6V
7Charging Current (std.)0.2 C5A     40A
8Discharging Current (Max. continue)0.5C5A      100A
9Discharging Current (Max. temporary)0.75 C5A    150A
10Charging Temperature & Humidity0℃ ~ +45℃   45~85%RH
11Discharging Temperature & Humidity-20℃ ~ +60℃ 45~85%RH
12Battery storage and transportation environment temperature & humidity rangesMin. 1 month-20℃ ~ +60℃ 45~85%RH
Min. 3 months-20℃ ~ +45℃ 45~85%RH
Min. 12 months-20℃ ~ +25℃ 45~85%RH

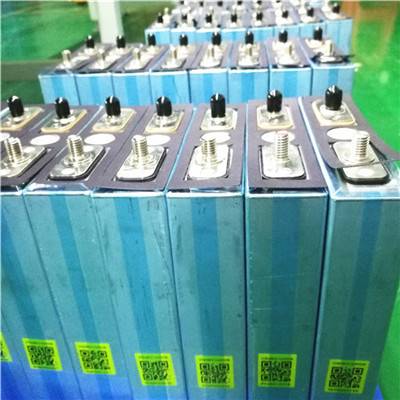

13Battery Cell TypePrismatic cell 3.2V 100AH

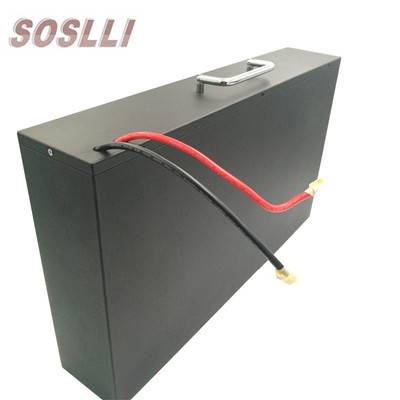

14Battery Box SizeBox:475mm*285mm*90mm
15Protection FuctionsOver charge, Over discharge,
Over load, Short Circuit

17WeightApprox. 20kg metal box
18Cycle Life2000 times
19Warranty12 months

Key Features :
Longer Cycle Life : Offers up to 20 times longer cycle life and five times longer float/calendar life than lead acid battery , helping to minimize replacement cost and reduce total cost of ownership
Lighter Weight : About 40% of the weight of a comparable lead acid battery . A " drop in" replacement for lead acid batteries
Higher Power : Delivers twice power of lead acid battery ,even high discharge rate, while maintaining high energy capacity
Wider Temperature Range : -20℃~60℃
Superior Safety: Lithium Iron Phosphate chemistry eleminates the risk of explosion or combustion due to high impact overcharging or short circuit situation

Applications :
♦Wheelchairs and scooters
♦Solar/wind energy storage
♦Back-up power for small UPS
♦Golf trolleys & buggies
♦Electric bikes

Product Details

LiFePO4 12V lithium battery 200Ah Customized Batteries Deep Cycle Li Ion Lithium Ups Battery 12V 100Ah Lithium Iron Phosphate Battery with BMS.
Every Lithium Battery we offer is built with a Fail Safe Built in Battery Protection System (BMS).
LiFePO4 battery 12v 100ah , created by the use of Iron (Fe) as a cathode material. LiFePO4 cells have a higher discharge current, do not explode under extreme conditions and weigh less.

Main Applications
1.Energy Storage:Solar-Wind Power System / City Grid (On/Off) / Community and Family / RV Motorhome /Golf Carts Battery / Boat Marine Yachts / Electric Skateboard / Vehecle.
2.Back-up System and UPS:Telcom Base / CATV system / Computer Server Center / Medical Instrumnt / Military Equipment.
3.Other Applications:Security and Electronics / Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light / LED Backup / Engine Starting Battery,etc.

Fast delivery service.
1.  Quick response to your any inquiry within 12 hours.
2.  Customized design is available, OEM and ODM are welcome.
3  Offer the highest quality with the best price.
4.  We offer 2 years' warranty on our LiFePO4 battery.
5.  Professional pre-sales service with whole-hearted after-sales service.

Pack in safety industrial package, with IATA shipping standard.
1. For sample or small order: ship by DHL, UPS, FedEx and TNT etc…
2. For large order, ship by AIR or OCEAN.


20 thousand square meters plant 12 automatic production line 600,000 battery packs and chargers production capacity a month.
Strict control for cleanliness in dust-free workshop from IQC,IPQC to OQC, we control every step strictly CE, UL, SGS, FCC, ROHS and ISO9001: 2000 certified.
We dedicated and experienced engineering, manufacturing and quality control teams work close to support our customers from product design to mass production.
Reply within 24 working hours. We use specialized equipment, well-known suppliers of materials to resolve customer issues, to test every product in 100% for the quality assurance.

  • Previous:
  • Next:

  • 1.  Q: Can you accept OEM and ODM Service? What information should be provided for OEM and ODM?

    A: Yes, we supply OEM&ODM service as clients requirement.Please provide details in below picture, such as voltage, capacity, max continuous working current, size requirement, package,etc.


    2.  Q: Can we get samples for test?

    A: Yes, but free samples are not available at beginning.

    3. Q: What’s your payment term?

    A: TT, L/C, West Union, Paypal etc.

    4. Q: What’s your warranty for products?

    A: Generally speaking, it’s one year’s warranty, for quality problems, we will send you a new one.

    5. Q: How long will be the delivery?

    A: Usually delivery in 10-15 days, but could be change according to the quantity or other things.
