China 72v 60Ah lithium ion Li-Ion battery pack for e bike Manufacturer and Supplier | SOSLLI

Short Description:

Title: 72v 60AhLi-Ion lithium ion battery pack with waterproof box for electric bike scooter motorcycle, electric golf cart, e-wheelchair,etc.
60A Maximum Continuous Discharge Current Built-in BMS board
This battery can use for 72V 4000W max electric bicycle motor, size and power can be customized .


Tech Specs & Features

Product Video

FAQ

Product Details

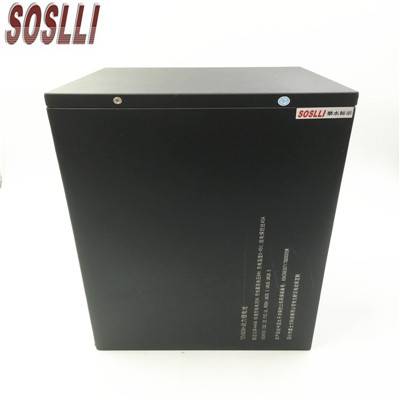

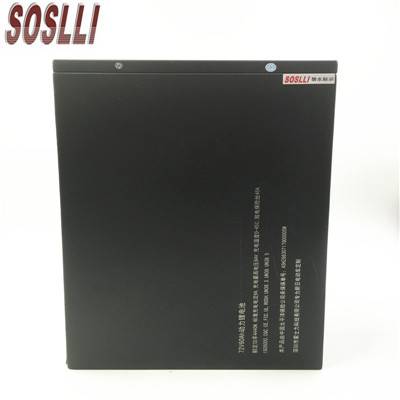

72v 60Ah lithium ion battery pack:

No.ItemSpecificationRemarks
1Brand NameSOSLLI or OEM
2Model NO.SSL-ICR20S23P18650E25
3Normilar Capacity60h0.2 C5A discharge
4Normilar Voltage72V
5Discharge Voltage (Min.)55V
6Charging Voltage (Max.)84V
7Charging Current (std.)0.2 C5A
8Discharging Current (Max. continue)40A
9Discharging Current (Max. temporary)85A
10Charging Temperature & Humidity0℃ ~ +45℃   45~85%RH
11Discharging Temperature & Humidity-20℃ ~ +60℃ 45~85%RH
12Battery storage and transportation environment temperature & humidity rangesMin. 1 month-20℃ ~ +60℃ 45~85%RH
Min. 3 months-20℃ ~ +45℃ 45~85%RH
Min. 12 months-20℃ ~ +25℃ 45~85%RH
13Battery TypeLi-ion battery 18650 2500mAh
14Internal Impedance ≤80 mΩ
15Protection FuctionsOver charge, Over discharge, Over load, Short Circuit
16Size220*220*340mm or customizedRecommend or Customize
17WeightApprox. 25kg Metal box
18Cycle Life800 times
19Warranty12 months



All lithium ion battery PACK 22.2V series with 3.7v 2600 mAh 18650 cell as below.

ModelVoltageCapacitySize/Weight(package)
SSL-ICR6S1P22.2V/24V2.6Ah40*20*200mm or Customized
SSL-ICR6S2P5.2AhRecommend or Customized. The Lithium ion battery PACK can packing with PVC/Plastic box/Iron box that size/weight is according to the battery solution.
SSL-ICR6S3P7.8Ah
SSL-ICR6S4P10.4Ah
SSL-ICR6S5P13.0Ah
SSL-ICR6S6P15.6Ah
SSL-ICR6S7P18.2Ah
SSL-ICR6S8P20.8Ah
SSL-ICR6S9P23.4Ah
SSL-ICR6S10P26.0Ah
SSL-ICR6S20P52Ah



1: FACTORY DIRECT WHOLESALE BOTTOM PRICE.
2: NICE QUALITY. UL, CE, UN38.3, MSDS and GLOBAL INSURANCE APPROVAL.
3: QUICK SHIPPING WITHIN 3 DAYS.
4: NO MOQ, 1PC OK . SMALL SAMPLE ORDER WELCOME.
5: ONLINE PAYMENT (Paypal, Alibaba trade assurance) AVAILABLE.
6: FACTORY WARRANTY


  • Previous:
  • Next:

  • 1.  Q: Can you accept OEM and ODM Service? What information should be provided for OEM and ODM?

    A: Yes, we supply OEM&ODM service as clients requirement.Please provide details in below picture, such as voltage, capacity, max continuous working current, size requirement, package,etc.

    FAQ

    2.  Q: Can we get samples for test?

    A: Yes, but free samples are not available at beginning.

    3. Q: What’s your payment term?

    A: TT, L/C, West Union, Paypal etc.

    4. Q: What’s your warranty for products?

    A: Generally speaking, it’s one year’s warranty, for quality problems, we will send you a new one.

    5. Q: How long will be the delivery?

    A: Usually delivery in 10-15 days, but could be change according to the quantity or other things.
