China 24V 25.2V 9AH Lithium Ion battery pack with built in BMS Manufacturer and Supplier | SOSLLI

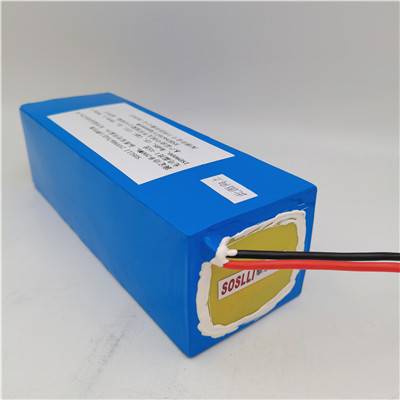

24V 25.2V 9AH Lithium Ion battery pack with built in BMS Featured Image

Short Description:

24V 9AH lithium iron phosphate battery pack with BMS
Model No.: SSL-IFR7S6PE15
Introduction:24V 25.2V 9AH lithium ion battery pack for kid motorcycle, toy car,lead acid replacement battery

Send email to us Download as PDF

Tech Specs & Features

Product Video

FAQ

Advantages

SOSLLI 24V 9000mAh 7S6P 18650 rechargeable lithium ion battery pack:

No.	Item		Specification	Remarks
1	Brand Name		SOSLLI or OEM
2	Model NO.		SSL-ICR6S1P26I
3	Normilar Capacity		2.6Ah	0.2 C₅A discharge
4	Normilar Voltage		22.2V
5	Discharge Voltage (Min.)		16.5V
6	Charging Voltage (Max.)		25.2V
7	Charging Current (std.)		0.2 C₅A
8	Discharging Current (Max. continue)		1 C₅A
9	Discharging Current (Max. temporary)		2 C₅A
10	Charging Temperature & Humidity		0℃ ~ +45℃ 45~85%RH
11	Discharging Temperature & Humidity		-20℃ ~ +60℃ 45~85%RH
12	Battery storage and transportation environment temperature & humidity ranges	Min. 1 month	-20℃ ~ +60℃ 45~85%RH
		Min. 3 months	-20℃ ~ +45℃ 45~85%RH
		Min. 12 months	-20℃ ~ +25℃ 45~85%RH
13	Battery Type		Li-ion battery 18650 2000mAh
14	Internal Impedance		≤60 mΩ
15	Protection Fuctions		Over charge, Over discharge, Over load, Short Circuit
16	Size		2040200mm	Recommend or Customize
17	Weight		Approx. 0.4kg Plastic packing
18	Cycle Life		800 times
19	Warranty		12 months

All lithium ion battery PACK 22.2V series with 3.7v 2600 mAh 18650 cell as below.

Model	Voltage	Capacity	Size/Weight(package)
SSL-ICR6S1P	24V/22.2V	2.6Ah	4020200mm or Customized
SSL-ICR6S2P		5.2Ah	Recommend or Customized. The Lithium ion battery PACK can packing with PVC/Plastic box/Iron box that size/weight is according to the battery solution.
SSL-ICR6S3P		7.8Ah
SSL-ICR6S4P		10.4Ah
SSL-ICR6S5P		13.0Ah
SSL-ICR6S6P		15.6Ah
SSL-ICR6S7P		18.2Ah
SSL-ICR6S8P		20.8Ah
SSL-ICR6S9P		23.4Ah
SSL-ICR6S10P		26.0Ah
SSL-ICR6S20P		52Ah

Advantages

1.Controlled by CPU, serve fulll service to all end users
2.Adopting PWM modulation and advanced Mosfet power device,, running more stable
3.Bypass outlet available, user can connect equipment of heavy load without damaging
UPS
4.Advanced automatic constant charging circuit, prolongs battery life
5.Perfect protection against battery under voltage, overload and short circuit
6.Built inside with high quality value controlled LiFePO4 Lithium ion battery,provides
strong power to users

Key Features
1.Lighter weight , smaller size
2.High temperature performance
3.Extremely safe, no explosion, no fire under collision
4.Strong over-discharge resistance and charge retention
5.Strong charging acceptance and quick-charging capability
6.Maintenance-free and no acid or water for maintenance in usage
7.Large capability and long life for all high power output applications
8.Environmentally friendly non-toxic,non-contaminating,no rare metal
9.Low self-discharge and good discharge performance at low temperature
10.Excellent large current discharge performance especially in startup and climbing

Lithium battery's advantage

Lithium ion batteries are common in consumer electronics. They are one of the most popular types of battery for portable electronics, with one of the best energy-to-weight ratios, no memory effect, and a slow loss of charge when not in use. In addition to uses for consumer electronics, lithium-ion batteries are growing in popularity for defense, automotive, and aerospace applications due to their high energy density.
Lithium batteries are lighter than other equivalent secondary batteries-often much lighter. The energy is stored in these batteries through the movement of lithium ions.
The lithium ion electric bike battery is more safe and reliable than the lead acid one. It does not explode or burn when bump, heavy stress, needle pricking, short circuit, overcharge and overheat. Environment-friendly: Accredited with CE, without any hazardous and noxious substances. compacted in volume and light in weight.

As more and more pollution,Warming seriously,Earth Close to Unfit for human Living.

Previous:

Next: 24V 18Ah 18650 rechargeable li-ion battery pack

1. Q: Can you accept OEM and ODM Service? What information should be provided for OEM and ODM?

A: Yes, we supply OEM&ODM service as clients requirement.Please provide details in below picture, such as voltage, capacity, max continuous working current, size requirement, package,etc.
