China 24V 18Ah 18650 rechargeable li-ion battery pack Manufacturer and Supplier | SOSLLI

Short Description:

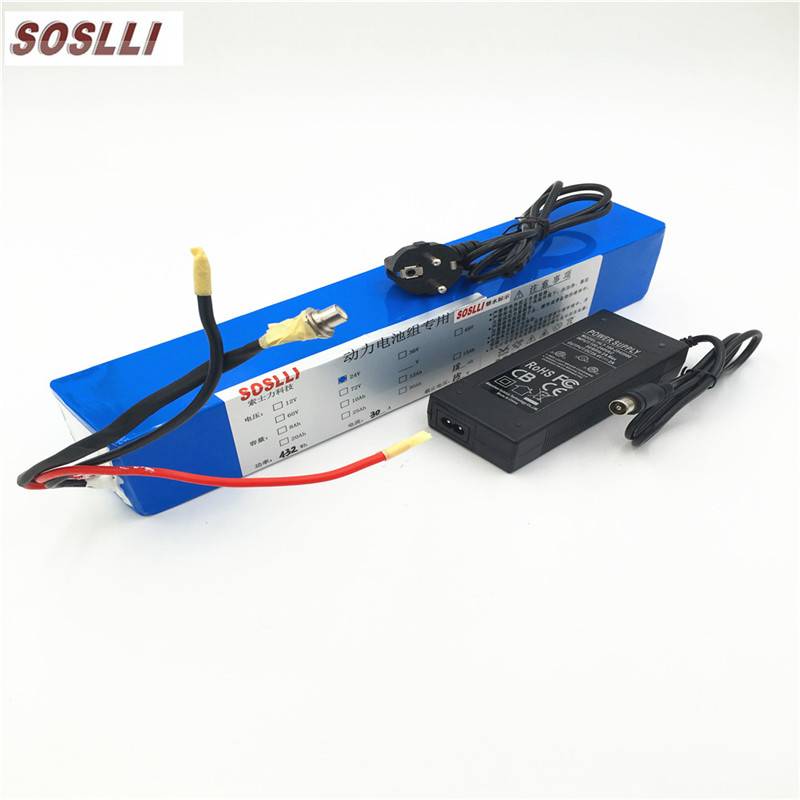

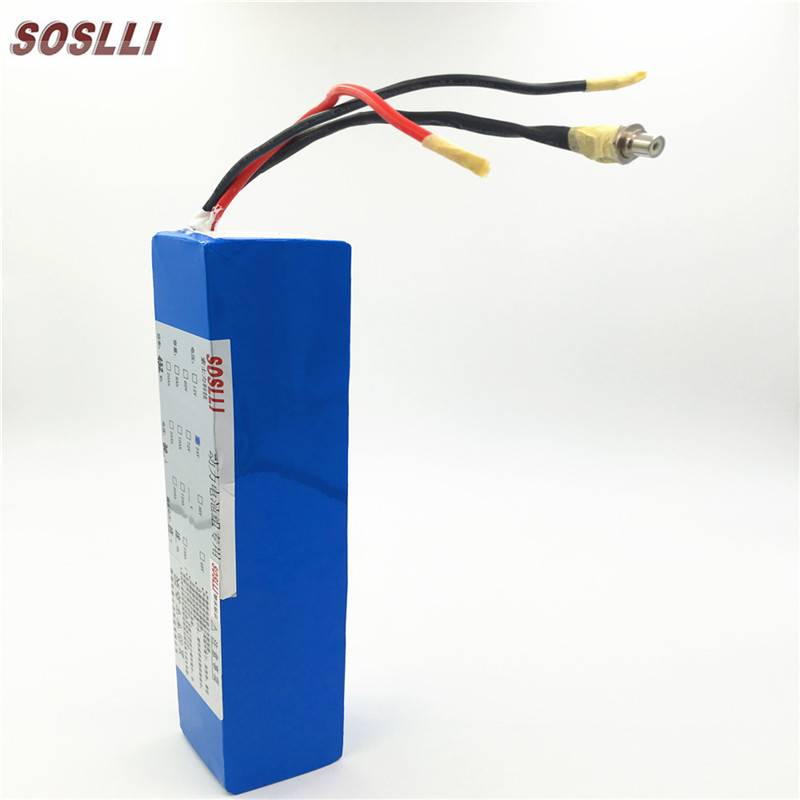

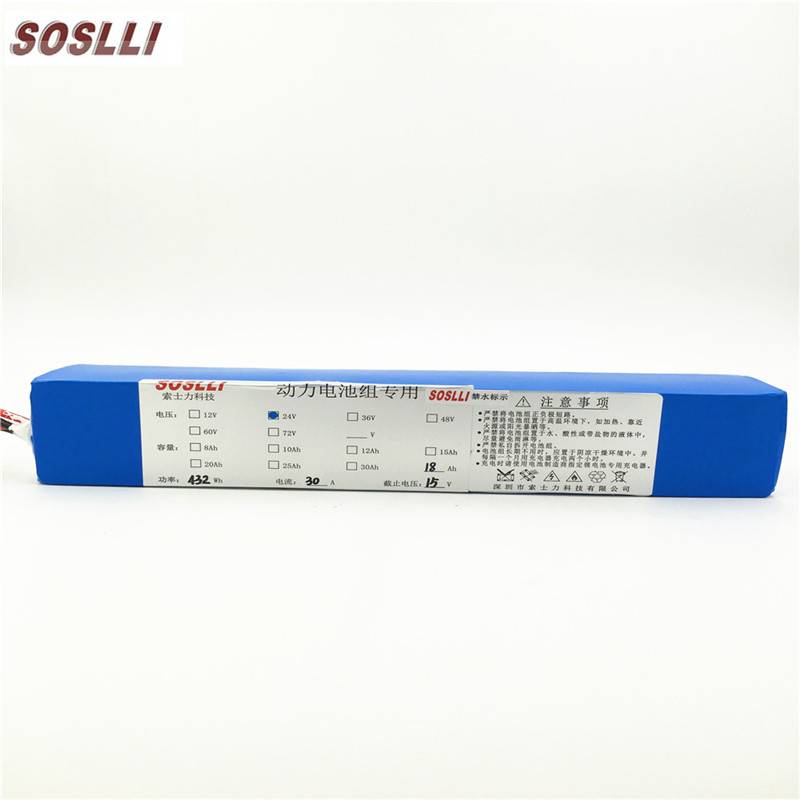

24v 18ah 18650 rechargeable Lithium Ion battery pack
Model No.: SSL-IFR7S8PE22
Introduction:24V 25.2V 18AH lithium ion battery pack for kid motorcycle, toy car,lead acid replacement battery,E bike,electric scooter bicycle


Tech Specs & Features

Product Video

FAQ

Advantages

SOSLLI 24V 18000mAh 7S6P 18650 rechargeable lithium ion battery pack:

No.ItemSpecificationRemarks
1Brand NameSOSLLI or OEM
2Model NO.SSL-ICR186507S8P262
3Normilar Capacity17600mAh0.2 C5A discharge
4Normilar Voltage22.2V
5Discharge Voltage (Min.)16.5V
6Charging Voltage (Max.)25.2V
7Charging Current (std.)0.2 C5A
8Discharging Current (Max. continue)1 C5A
9Discharging Current (Max. temporary)2 C5A
10Charging Temperature & Humidity0℃ ~ +45℃   45~85%RH
11Discharging Temperature & Humidity-20℃ ~ +60℃ 45~85%RH
12Battery storage and transportation environment temperature & humidity rangesMin. 1 month-20℃ ~ +60℃ 45~85%RH
Min. 3 months-20℃ ~ +45℃ 45~85%RH
Min. 12 months-20℃ ~ +25℃ 45~85%RH
13Battery TypeLi-ion battery 18650 2000mAh
14Internal Impedance

15Protection FuctionsOver charge, Over discharge, Over load, Short Circuit
16Size
Recommend or Customize
17WeightApprox. 3.5kg Plastic packing
18Cycle Life800 times
19Warranty12 months

All lithium ion battery PACK 22.2V series with 3.7v 2600 mAh 18650 cell as below.

ModelVoltageCapacitySize/Weight(package)
SSL-ICR6S1P24V/22.2V2.6Ah40*20*200mm or Customized
SSL-ICR6S2P5.2AhRecommend or Customized. The Lithium ion battery PACK can packing with PVC/Plastic box/Iron box that size/weight is according to the battery solution.
SSL-ICR6S3P7.8Ah
SSL-ICR6S4P10.4Ah
SSL-ICR6S5P13.0Ah
SSL-ICR6S6P15.6Ah
SSL-ICR6S7P18.2Ah
SSL-ICR6S8P20.8Ah
SSL-ICR6S9P23.4Ah
SSL-ICR6S10P26.0Ah
SSL-ICR6S20P52Ah
Charging AttentionCharging current and charging voltage should be less than specified in the Product Specification.
The charger shall be designed to comply with Specification.
It is dangerous that charging with higher current or voltage than Product Specification may cause damage to the cell electrical,mechanical safety performance.



Lithium battery's advantage

Lithium ion batteries are common in consumer electronics. They are one of the most popular types of battery for portable electronics, with one of the best energy-to-weight ratios, no memory effect, and a slow loss of charge when not in use. In addition to uses for consumer electronics, lithium-ion batteries are growing in popularity for defense, automotive, and aerospace applications due to their high energy density.
Lithium batteries are lighter than other equivalent secondary batteries-often much lighter. The energy is stored in these batteries through the movement of lithium ions.
The lithium ion electric bike battery is more safe and reliable than the lead acid one. It does not explode or burn when bump, heavy stress, needle pricking, short circuit, overcharge and overheat. Environment-friendly: Accredited with CE, without any hazardous and noxious substances. compacted in volume and light in weight.

As more and more pollution,Warming seriously,Earth Close to Unfit for human Living.



  • Previous:
  • Next:

  • 1.  Q: Can you accept OEM and ODM Service? What information should be provided for OEM and ODM?

    A: Yes, we supply OEM&ODM service as clients requirement.Please provide details in below picture, such as voltage, capacity, max continuous working current, size requirement, package,etc.

    FAQ

    2.  Q: Can we get samples for test?

    A: Yes, but free samples are not available at beginning.

    3. Q: What’s your payment term?

    A: TT, L/C, West Union, Paypal etc.

    4. Q: What’s your warranty for products?

    A: Generally speaking, it’s one year’s warranty, for quality problems, we will send you a new one.

    5. Q: How long will be the delivery?

    A: Usually delivery in 10-15 days, but could be change according to the quantity or other things.
