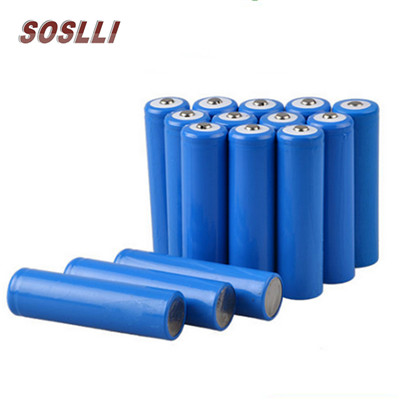

China 3.2v 1000mAh size A 18500 Lithium Iron phosphate battery cell Manufacturer and Supplier | SOSLLI

3.2v 1000mAh size A 18500 Lithium Iron phosphate battery cell Featured Image

Short Description:

Applications:Toys, Power Tools, Home Appliances, Consumer Electronics,solar system, telecom, robotic, ups,etc.

Tech Specs & Features

Product Video

FAQ

3.2v 1000mAh 18500 LiFePO4 battery:

No.	Item		Specification	Remarks
1	Brand Name		SOSLLI or OEM
2	Model NO.		SSL-IFR18500
3	Normilar Capacity		1000mAh	0.2 C₅A discharge
4	Normilar Voltage		3.2 V
5	Discharge Voltage (Min.)		2.0V
6	Charging Voltage (Max.)		3.65V
7	Charging Current (std.)		0.5 C₅A
8	Discharging Current (Max. continue)		1 C₅A
9	Discharging Current (Max. temporary)		2 C₅A
10	Charging Temperature & Humidity		0℃ ~ +45℃ 45~85%RH
11	Discharging Temperature & Humidity		-20℃ ~ +60℃ 45~85%RH
12	Battery storage and transportation environment temperature & humidity ranges	Min. 1 month	-20℃ ~ +60℃ 45~85%RH
		Min. 3 months	-20℃ ~ +45℃ 45~85%RH
		Min. 12 months	-20℃ ~ +25℃ 45~85%RH
13	Battery Type		LiFePO4 battery 18500 1000mAh
14	Internal Impedance		≤50 mΩ
15	Protection Fuctions		Over charge, Over discharge, Over load, Short Circuit
16	Size		181850mm	Recommend or Customize
17	Weight		Approx. 31g	PVC/ABS package
18	Cycle Life		3000 times
19	Warranty		12 months

Features:

* Safest lithium chemistry* High energy density, 120-130kWh/kg * Efficient & long-lasting up to 7000+ cycles * Good high temperature performance * Good high rate discharging performance * Excellent stability

Ready for Battery Pack Assembly:

* Cell models variety available * Multiple cells assembled with protection circuit board (PCB), wire & connector available * Battery modules or units available for variety applications * Play replacement for lead acid battery with ABS case

Typical Advantage of Soslli’s lithium Iron phosphate battery PACK:

1. Safer: Triple protection designs to prevent short-circuit inside the cell.
2. Real and high capacity, Low self-discharging, no memory effect.
3. Longer cycle life more than 2000 times @80% capacity retain.
4. Large batch production, offering very similar cells for rating.

Previous: 3.2v 600mAh 14500 LiFePO4 cylindrical battery cell for solar lighting

Next: High rate discharge 20C 3.2v 400mAh 14430 AA cylindrical LiFePO4 battery cell for e cigar lighter

1. Q: Can you accept OEM and ODM Service? What information should be provided for OEM and ODM?

A: Yes, we supply OEM&ODM service as clients requirement.Please provide details in below picture, such as voltage, capacity, max continuous working current, size requirement, package,etc.
