China 24V 100AH LiFePO4 lithium iron phosphate battery pack for off-grid solar energy Manufacturer and Supplier | SOSLLI
Product Details and Advantages

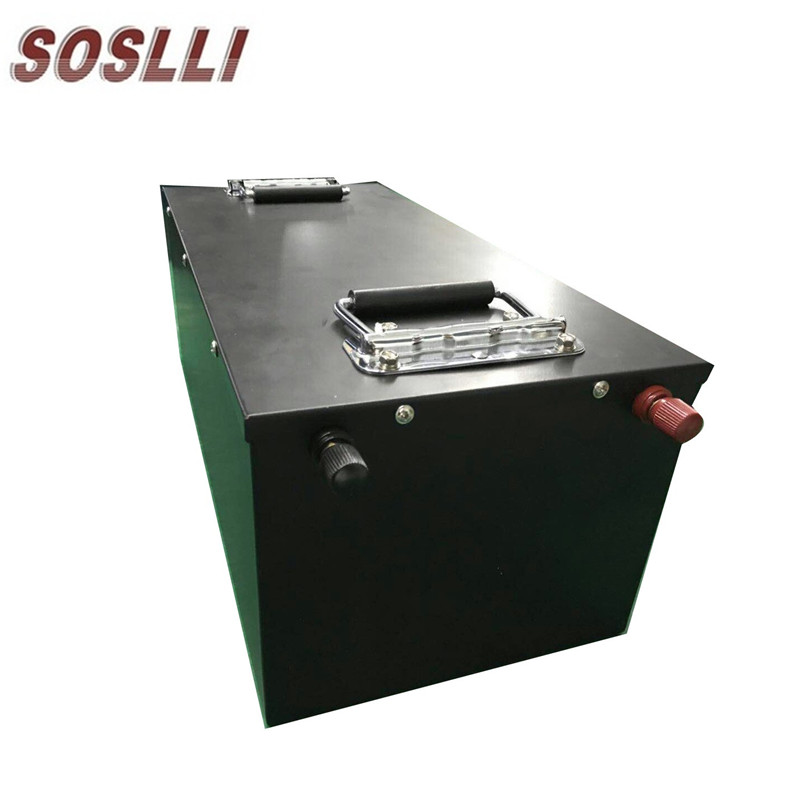

Title: 24V 100AH LiFePO4 lithium iron phosphate battery pack with BMS for off-grid solar energy
Model No.: SSL-IFR8S1PE1000
Introduction: 24V 100AH LiFePO4 lithium iron phosphate LFP battery pack for solar energy storage,off-grid, backup power.,UPS station,home household storage powerwall, iron tower, marine yacht,solar energy,etc.
| No. | Item | Specification | Remarks | |
| 1 | Brand Name | SOSLLI or OEM | ||
| 2 | Model NO. | SSL-IFR8S1PE1000 | ||
| 3 | Norminal Capacity | 100Ah | 0.2 C5A discharge | |
| 4 | Norminal Voltage | 25.6V | ||
| 5 | Discharge Voltage (Min.) | 20.0V | ||
| 6 | Charging Voltage (Max.) | 29.2V | ||
| 7 | Charging Current (std.) | 0.2 C5A 20A | ||
| 8 | Discharging Current (Max. continue) | 1 C5A 100A | ||
| 9 | Discharging Current (Max. temporary) | 1.5C5A 150A | ||
| 10 | Charging Temperature & Humidity | 0℃ ~ +45℃ 45~85%RH | ||
| 11 | Discharging Temperature & Humidity | -20℃ ~ +60℃ 45~85%RH | ||
| 12 | Battery storage and transportation environment temperature & humidity ranges | Min. 1 month | -20℃ ~ +60℃ 45~85%RH | |
| Min. 3 months | -20℃ ~ +45℃ 45~85%RH | |||
| Min. 12 months | -20℃ ~ +25℃ 45~85%RH | |||

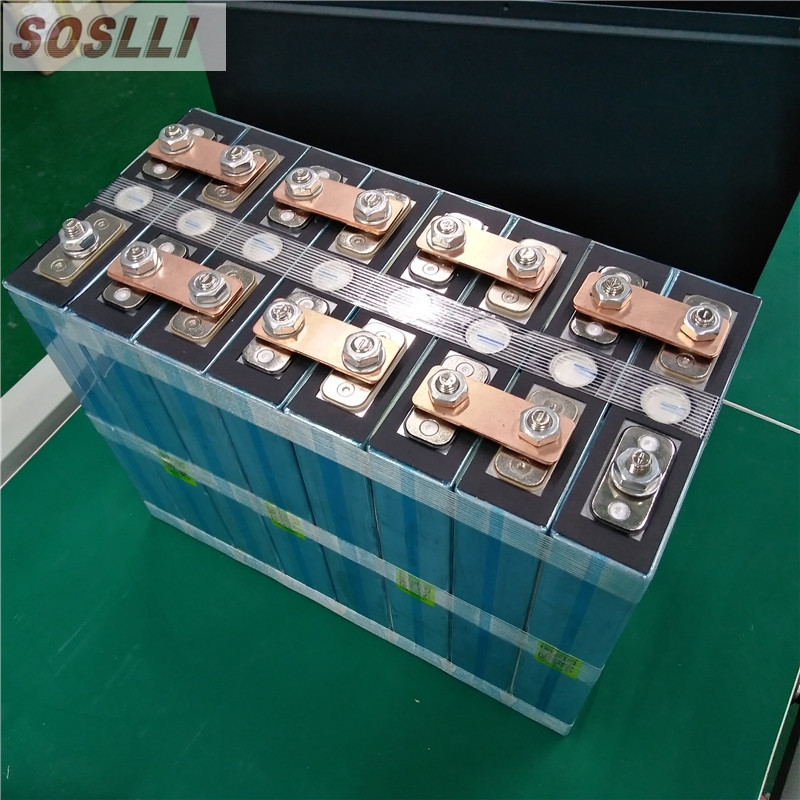

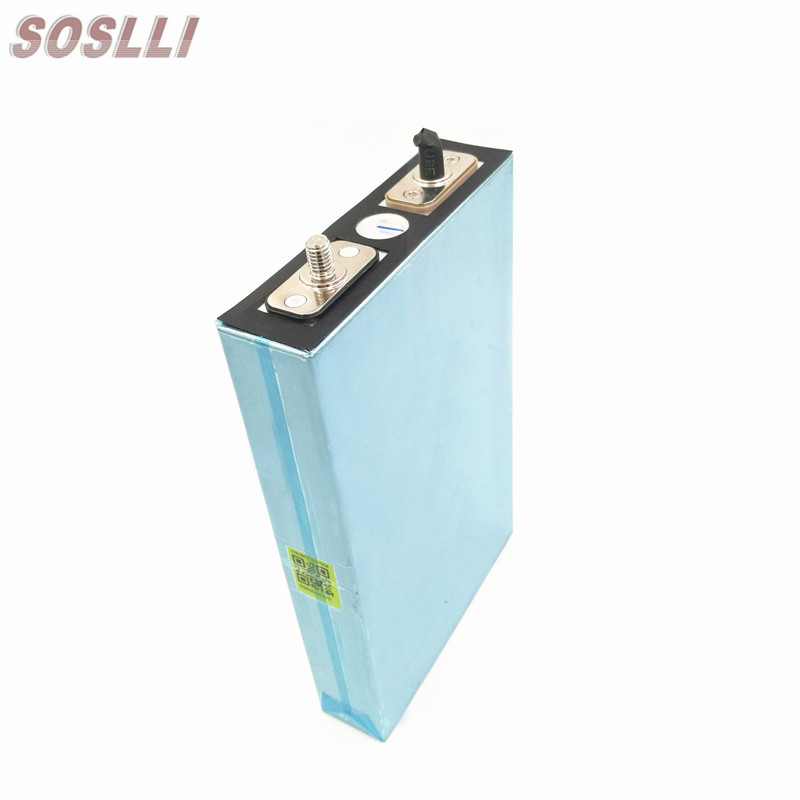

| 13 | Battery Cell | Prismatic LiFePO4 battery 3.2V 100Ah | ||
| 14 | Battery Box Size | Box:34cm*16cm*25cmRed/black pole: 27mm | ||

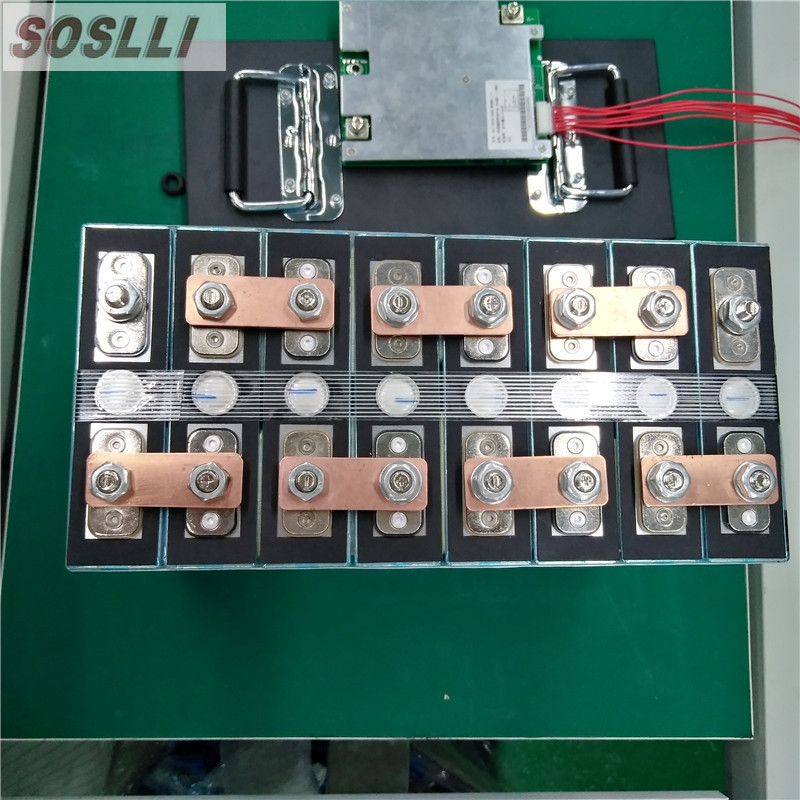

| 15 | BMS | included | ||
| 16 | Protection Fuctions | Over charge, Over discharge, Over load, Short Circuit | Customized Bottle type | |
| 17 | Approximate Weight | 19kg | ||
| 18 | Cycle Life | 2000 times | ||
| 19 | Warranty | 12 months | ||
SOSLLI Factory Offer you:
1:ORIGINAL FACTORY DIRECT LOWEST PRICE.
2:NICE QUALITY. PASS CERTIFICATION
3:WITHOUT MOQ. SMALL SAMPLE ORDER WELCOME.
4:QUICK SHIPPING WITHIN 7 DAYS.
5:ONLINE PAYMENT
6:FACTORY 3 YEAR WARRANTY, SUPPORT 7 DAYS REFUND.
7:AFTER SALES SERVICES 24 HOURS.
Battery Application
• Electrical vehicules and utilities • Solar and wind energy storage • Marine • Street lightning • CCTV and security camera • UPS, electric back-up • Telecom • Medical equipments.
Our Battery Applied on:
Digital Products ; Consumer Products;LED Light
Medical Devices;Solar Systems;Energy Storage System ;Electric Vehicles
Apply to:
Flashlights, Torch, Power bank, Radio Control Toys, Remote Control Toys, Unmanned Aerial Vehicles, Laser Pens, Medical Equipment, Electric Vehicles, Electronic cigarettes, Vape Mod, Vape Pen, Ecig, Drones, Manometer, Pressure Gauge, Gear, and other equipment.
More we can produce
We can design 12V LiFePO4 with same VRLA case size to replace SLA battery !
Welcome customize shell,weight, size,MBS,technology,etc !
Voltage range: 3.2V - 12V – 24V – 48V – 72V – 80V– 96V– 144V – 300V – 720V
Capacity range: 7Ah - 100Ah - 200Ah- 300Ah-....1000Ah
1.1st class - BMS system 3-5 years warranty Voltage & Current & Temperature monitoring Monomer balance SOC estimation
2. Other Normal BMS system Only 6 months or 1 year warranty No actual monitoring system, only sets function that is limiting on voltage
High efficiency output
High / Low temperature resistance
More than 2000 cycles @ 100% DOD
No memory effect
High capacity
Customized size / color / LED display / Bluetooth function / shell / BMS could be avaliable
Development History of the Lithium Ion battery BMS
1ST Generation: bare board with only the basic function. Spot welding process is needed.
2nd, Generation, bare board with cooling fin, the most common seen types in the market.
3rd, Generation, integral seal forming process with waterproof and dustproof function.
4th, Fine copper base supporting large current, more ideal cooling performance due to its corrugation
Applications of 24v 200ah Lifepo4 batteries pack:
Electric Propelling Applications
♦ Engine Starting Battery
♦ Commercial Bus and Transit:
E-car, E-bus, Golf troller/car, E-bike, Scooter, RV, AGV, Marine, Tourist car, Caravan, Wheel chair,
E-truck, E-sweeper, Floor cleaner, E-walker etc.
♦ Intellectual Robots
♦ Power tools: electric drills, toys
Energy Storage
♦ Solar-Wind Power System
♦ City Grid (On/Off)
Back-up System and UPS
♦ Telcom Base, CATV system, Computer Server Center, Medical Instrumnt, Military Equipment
Features of Lifepo4 batteries pack:
* Long service life.
* Low self-discharge.
* Environment friendly.
* Good safety performance.
* Maintenance-free operation.
*Broad operating temperature range.
Welome to contact us freely -24 hours!
Work for delong over 5 years, Feel freely to contact me online for any inquiry or question, Always try my best to recommend best product and best price for you!
Action now !contact us for whole catalog!
Action now! Trust you will like our product!
1. Q: Can you accept OEM and ODM Service? What information should be provided for OEM and ODM?
A: Yes, we supply OEM&ODM service as clients requirement.Please provide details in below picture, such as voltage, capacity, max continuous working current, size requirement, package,etc.
2. Q: Can we get samples for test?
A: Yes, but free samples are not available at beginning.
3. Q: What’s your payment term?
A: TT, L/C, West Union, Paypal etc.
4. Q: What’s your warranty for products?
A: Generally speaking, it’s one year’s warranty, for quality problems, we will send you a new one.
5. Q: How long will be the delivery?
A: Usually delivery in 10-15 days, but could be change according to the quantity or other things.
